Example of multi-AZ environment configuration
On this page, we will provide an example configuration that can be used in production environments with multiple Availability Zones.
It will be an extended and more specific version of pod-environment-config so it
is expected that you are aware of the concepts and approaches defined
there.
To better understand why some configuration options were applied in
examples it is also recommended to look through configuring-inventory
Generic design

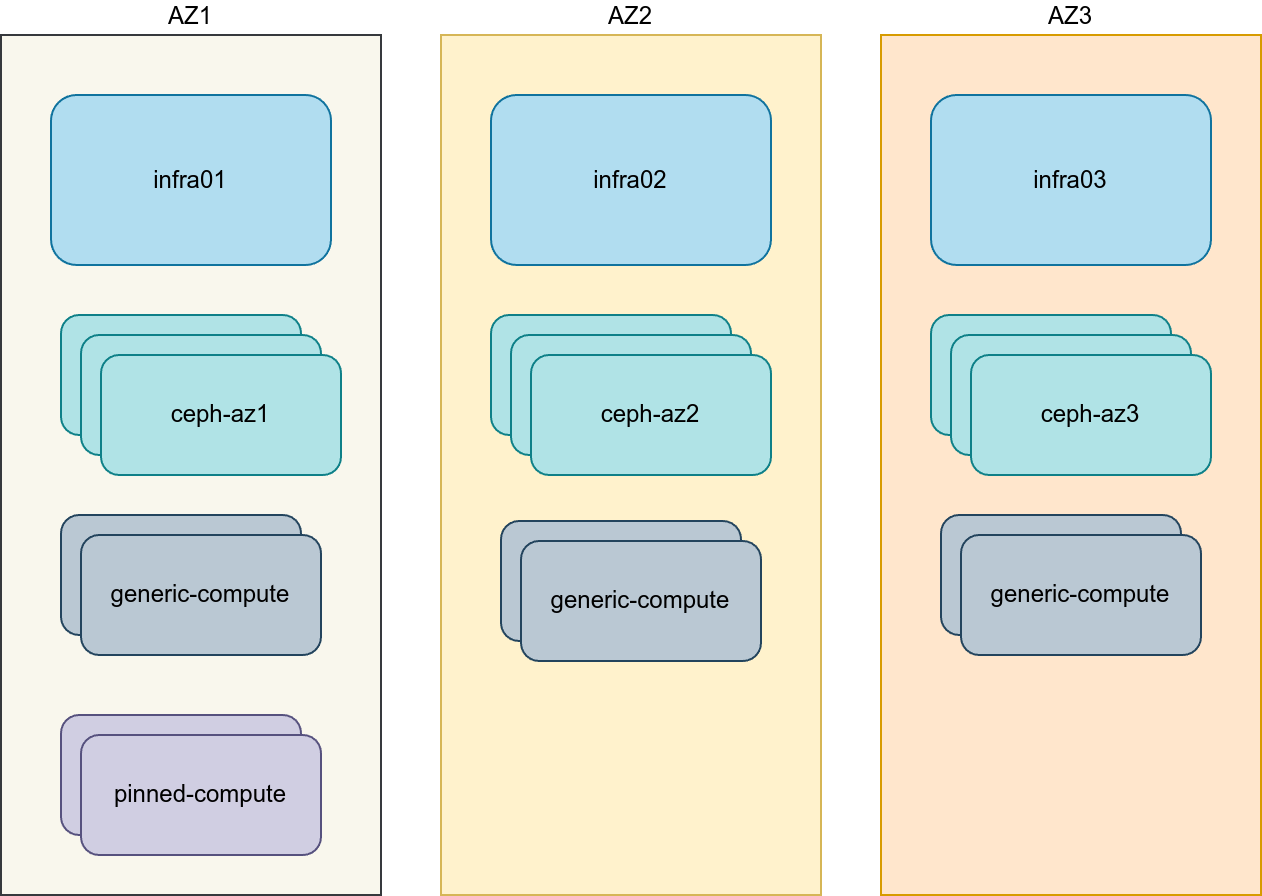

The following design decisions were made in the example below:
- Three Availability Zones (AZs)
- Three infrastructure (control plane) hosts, each host is placed in a different Availability Zone
- Eight compute hosts, 2 compute hosts in each Availability Zone. First Availability Zone has two extra compute hosts for pinned CPU aggregate.
- Three Ceph storage clusters provisioned with Ceph Ansible.
- Compute hosts act as OVN gateway hosts
- Tunnel networks which are reachable between Availability Zones
- Public API, OpenStack external and management networks are represented as stretched L2 networks between Availability Zones.
Load Balancing
A Load Balancer (HAProxy) is usually deployed on infrastructure hosts. With infrastructure hosts being spread across Availability Zones we need to come up with a more complex design which is aimed at solving the following issues:
- Withstand a single Availability Zone failure
- Reduce amount of cross-AZ traffic
- Spread load across Availability Zones
To address these challenges, the following changes to the basic design were made:
- Leverage DNS Round Robin (an A/AAAA record per AZ) for Public API
- Define Internal API FQDN through /etc/hosts overrides, which are unique per Availability Zone
- Define 6 keepalived instances: 3 for public and 3 for internal VIPs
- Ensure HAProxy to prioritize a backend from own Availability Zone over "remote" ones
The example also deploys HAProxy with Keepalived in their own LXC
containers on the contrary to a more conventional bare metal deployment.
You can check a haproxy-in-lxc for more details on how to do that.
Storage design complications
There are multiple complications related to organizing storage where the storage is not stretched between Availability Zones.
First, there is only a single controller in any given Availability
Zone, while multiple copies of cinder_volume needs to be
run for each storage provider for High Availability. As
cinder_volume needs access to storage network, one of the
best places for it are ceph-mon hosts.
Another challenge is to organize shared storage for Glance Images, as
rbd can't be used consistently anymore. While Glance
Interoperable Import interface could be leveraged for syncing images
between rbd backends, in fact not all clients and services
can work with Glances import
API. One of the most obvious solutions here can be usage of Swift
API, while configuring Ceph RadosGW policy to replicate the bucket
between independent instances located in their Availability Zones.
Last, but not the least complication is Nova scheduling when
cross_az_attach is disabled. As Nova will not add an
Availability Zone to instances request_specs when an
instance is created from a volume directly, on the contrary to creating
volume manually in advance and supplying volume UUID to the instance
create API call. The problem with that behavior, is that Nova will
attempt to Live Migrate or re-schedule instances without an Availability
Zone in request_specs to other AZs, which will result in
failure, as cross_az_attach is disabled. You can read more
about this in a Nova bug report In
order to work around this Bug you need to set a
default_schedule_zone for Nova and Cinder, which will
ensure AZ always being defined in request_specs. You can
also go further and define an actual Availability Zone as
default_schedule_zone, making each controller to have its
own default. As Load Balancer will attempt to send requests only to
"local" backends first, this approach does work to distribute new VMs
across all AZs when user does not supply AZ explicitly. Otherwise, the
"default" AZ will be accepting significantly more new signups.
Configuration examples
Network configuration
Network CIDR/VLAN assignments
The following CIDR assignments are used for this environment.
| Network | CIDR | VLAN |
|---|---|---|
| Management Network | 172.29.236.0/22 |
|
| AZ1 Storage Network | 172.29.244.0/24 |
|
| AZ1 Tunnel (Geneve) Network | 172.29.240.0/24 |
|
| AZ2 Storage Network | 172.29.245.0/24 |
|
| AZ2 Tunnel (Geneve) Network | 172.29.241.0/24 |
|
| AZ3 Storage Network | 172.29.246.0/24 |
|
| AZ3 Tunnel (Geneve) Network | 172.29.242.0/24 |
|
| Public API VIPs | 203.0.113.0/28 |
|
IP assignments
The following host name and IP address assignments are used for this environment.
| Host name | Management IP | Tunnel (Geneve) IP | Storage IP |
+==================+================+====================+================+ +------------------+----------------+--------------------+----------------+ | infra1 | 172.29.236.11 | | | +------------------+----------------+--------------------+----------------+ | infra2 | 172.29.236.12 | | | +------------------+----------------+--------------------+----------------+ | infra3 | 172.29.236.13 | | | +------------------+----------------+--------------------+----------------+ | az1_ceph1 | 172.29.237.201 | | 172.29.244.201 | +------------------+----------------+--------------------+----------------+ | az1_ceph2 | 172.29.237.202 | | 172.29.244.202 | +------------------+----------------+--------------------+----------------+ | az1_ceph3 | 172.29.237.203 | | 172.29.244.203 | +------------------+----------------+--------------------+----------------+ | az2_ceph1 | 172.29.238.201 | | 172.29.245.201 | +------------------+----------------+--------------------+----------------+ | az2_ceph2 | 172.29.238.202 | | 172.29.245.202 | +------------------+----------------+--------------------+----------------+ | az2_ceph3 | 172.29.238.203 | | 172.29.245.203 | +------------------+----------------+--------------------+----------------+ | az3_ceph1 | 172.29.239.201 | | 172.29.246.201 | +------------------+----------------+--------------------+----------------+ | az3_ceph2 | 172.29.239.202 | | 172.29.246.202 | +------------------+----------------+--------------------+----------------+ | az3_ceph3 | 172.29.239.203 | | 172.29.246.203 | +------------------+----------------+--------------------+----------------+ | az1_compute1 | 172.29.237.11 | 172.29.240.11 | 172.29.244.11 | +------------------+----------------+--------------------+----------------+ | az1_compute2 | 172.29.237.12 | 172.29.240.12 | 172.29.244.12 | +------------------+----------------+--------------------+----------------+ | az1_pin_compute1 | 172.29.237.13 | 172.29.240.13 | 172.29.244.13 | +------------------+----------------+--------------------+----------------+ | az1_pin_compute2 | 172.29.237.14 | 172.29.240.14 | 172.29.244.14 | +------------------+----------------+--------------------+----------------+ | az2_compute1 | 172.29.238.11 | 172.29.241.11 | 172.29.245.11 | +------------------+----------------+--------------------+----------------+ | az2_compute2 | 172.29.238.12 | 172.29.241.12 | 172.29.245.12 | +------------------+----------------+--------------------+----------------+ | az3_compute1 | 172.29.239.11 | 172.29.242.11 | 172.29.246.11 | +------------------+----------------+--------------------+----------------+ | az3_compute3 | 172.29.239.12 | 172.29.242.12 | 172.29.246.12 | +------------------+----------------+--------------------+----------------+
Host network configuration
Each host does require the correct network bridges to be implemented.
In this example, we leverage the systemd_networkd role that
performs configuration for us during openstack_hosts
execution. It creates all required vlans and bridges. The only
pre-requirement is to have a connection to the host via SSH available
for Ansible to manage the host.
Note
Example assumes that default gateway is set through
bond0 interface, which aggregates eth0 and
eth1 links. If your environment does not have
eth0, but instead has p1p1 or some other
interface name, ensure that references to eth0 are replaced
with the appropriate name. The same applies to additional network
interfaces
../../../../etc/openstack_deploy/user_networks.yml.az.example
Deployment configuration
Environment customizations
Deployed files in /etc/openstack_deploy/env.d allow the
customization of Ansible groups.
To deploy HAProxy in container we need to create a file
/etc/openstack_deploy/env.d/haproxy.yml with the following
content:
../../../../etc/openstack_deploy/env.d/haproxy.yml.container.example
As we are using Ceph for this environment, so the
cinder-volume runs in a container on the Ceph Monitor
hosts. To achieve this, implement
/etc/openstack_deploy/env.d/cinder.yml with the following
content:
../../../../etc/openstack_deploy/env.d/cinder-volume.yml.container.example
In order to be able to execute a playbook only against hosts in a
single Availability Zone, as well as be able to set AZ-specific
variables, we need to define groups definitions. For that, create a file
/etc/openstack_deploy/env.d/az.yml with the following
content:
../../../../etc/openstack_deploy/env.d/az.yml.example
Above example will create following groups:
azN_hostswhich will contain only bare metal nodesazN_containersthat will contain all containers that are spawned on-
bare metal nodes, that are part of the pod.
azN_allthat will contain azN_hosts and azN_containers members
We also need to define a complete new set of groups for Ceph, to deploy multiple independent instances of it.
For that, create a file
/etc/openstack_deploy/env.d/ceph.yml with the following
content:
../../../../etc/openstack_deploy/env.d/ceph.yml.az.example
Environment layout
The /etc/openstack_deploy/openstack_user_config.yml file
defines the environment layout.
For each AZ, a group will need to be defined containing all hosts within that AZ.
Within defined provider networks, address_prefix is used
to override the prefix of the key added to each host that contains IP
address information. We use AZ-specific prefixes for
container, tunnel, or storage.
reference_group contains the name of a defined AZ group and
is used to limit the scope of each provider network to that group.
YAML Anchors and Aliases are used heavily in the example below to populate all groups that might become handy while not repeating hosts definitions each time. You can read more about the topic in Ansible Documentation
The following configuration describes the layout for this environment.
../../../../etc/openstack_deploy/openstack_user_config.yml.az.example
User variables
In order to properly configure Availability Zones, we need to
leverage group_vars and define Availability Zone name used
for each AZ there. For this, create files:
/etc/openstack_deploy/group_vars/az1_all.yml/etc/openstack_deploy/group_vars/az2_all.yml/etc/openstack_deploy/group_vars/az3_all.yml
With content like below, where N should be AZ number depending on the file:
az_name: azNAs for this environment, the load balancer is created in the LXC
containers on the infrastructure hosts, we need to ensure absence of the
default route on eth0 interface. To prevent that from
happening, we override lxc_container_networks in
/etc/openstack_deploy/group_vars/haproxy/lxc_network.yml
file:
../../../../etc/openstack_deploy/group_vars/haproxy/lxc_network.yml.example
Next, we want to secure HAProxy pointing always to the backend which
is considered as "local" to the HAProxy. For that we switch balancing
algorithm to first and order re-backends so that the one
from current Availability Zone appears to be the first in the list. This
can be done by creating file
/etc/openstack_deploy/group_vars/haproxy/backend_overrides.yml
with content:
../../../../etc/openstack_deploy/group_vars/haproxy/first_backend.yml.az.example
We also need to define a couple of extra Keepalived instances in
order to secure DNS RR approach, along with configuring Keepalived in
unicast mode. For that create a file
/etc/openstack_deploy/group_vars/haproxy/keepalived.yml
with following content:
../../../../etc/openstack_deploy/group_vars/haproxy/keepalived.yml.az.example
In order to add support for multiple compute tiers (in with CPU
overcommit and pinned CPUs) you need to create a file
/etc/openstack_deploy/group_vars/pinned_compute_hosts with
content:
nova_cpu_allocation_ratio: 1.0
nova_ram_allocation_ratio: 1.0Rest of variables can be defined in
/etc/openstack_deploy/user_variables.yml but a lot of them
will be referencing az_name variable, so it's presence
(along with corresponding groups) are vital for this scenario.
../../../../etc/openstack_deploy/user_variables.yml.az.example
